Know the field before the first point.
Teams start at the blue boundary bases on the left and right. Home bricks sit inside the field as cover. Every A-half position has a matching B-half bunker, with two shared bricks on the 50.
Stair-step attacks
Two right-angle staircases climb inward from the lower half. Upright cover alternates above and below Mid, creating separate stages for switching attack angles. Doritos are split between upper and lower routes.
Read the upright routes
Doritos, pins, Aztecs and Mini Ws occupy different routes on this field. Read the coordinate plan rather than assuming a fixed Dorito sideline.
Use the low-cover route
S0, S1, the connector and S3 form this field's distinctive low-cover assembly. E and S2 are cake knuckles. Its location and geometry differ from the other layouts.
Buy the bunker set.
Each linked name opens its AIRUPS product page. These quantities cover the entire field; do not double them.
| Manufacturer product | Qty | Ground footprint | Height | Unit USD | Extended USD |
|---|---|---|---|---|---|
| Large Brick ↗ | 6 | 5 x 2.5 ft | 6 ft | $157 | $942 |
| Tall Can ↗ | 4 | 4 ft diameter | 6.5 ft* | $155 | $620 |
| Aztec - 5 ft Tall ↗ | 6 | 5 ft x 40 in | 5 ft | $208 | $1,248 |
| Pin ↗ | 6 | 3 ft diameter | 5 ft | $127 | $762 |
| Small Dorito ↗ | 8 | Not published | Listed as 5 ft Dorito | $179 | $1,432 |
| Mini W ↗ | 4 | 8 ft x 20 in | 5 ft | $164 | $656 |
| Short Cake ↗ | 8 | 3 ft diameter | 40 in | $110 | $880 |
| Snake Beam ↗ | 8 | 10 ft x 20 in | 28 in | $160 | $1,280 |
| 50 bunkers / listed bunker-only subtotal | $7,820 | ||||
Listings checked October 25, 2026. Prices may change. Shipping, tax, logos and customization are excluded. This is an individual-product list, not an AIRUPS bundle or endorsed manufacturer field package.
Equipment outside this bunker list
A complete venue also needs a suitable playing surface, protective netting and supports, start bases/buzzers, boundary marking, compatible anchors, inflation equipment, repair supplies, air supply and appropriate staging and spectator areas. Quantities depend on the site and supplier. No infrastructure allowance is included.

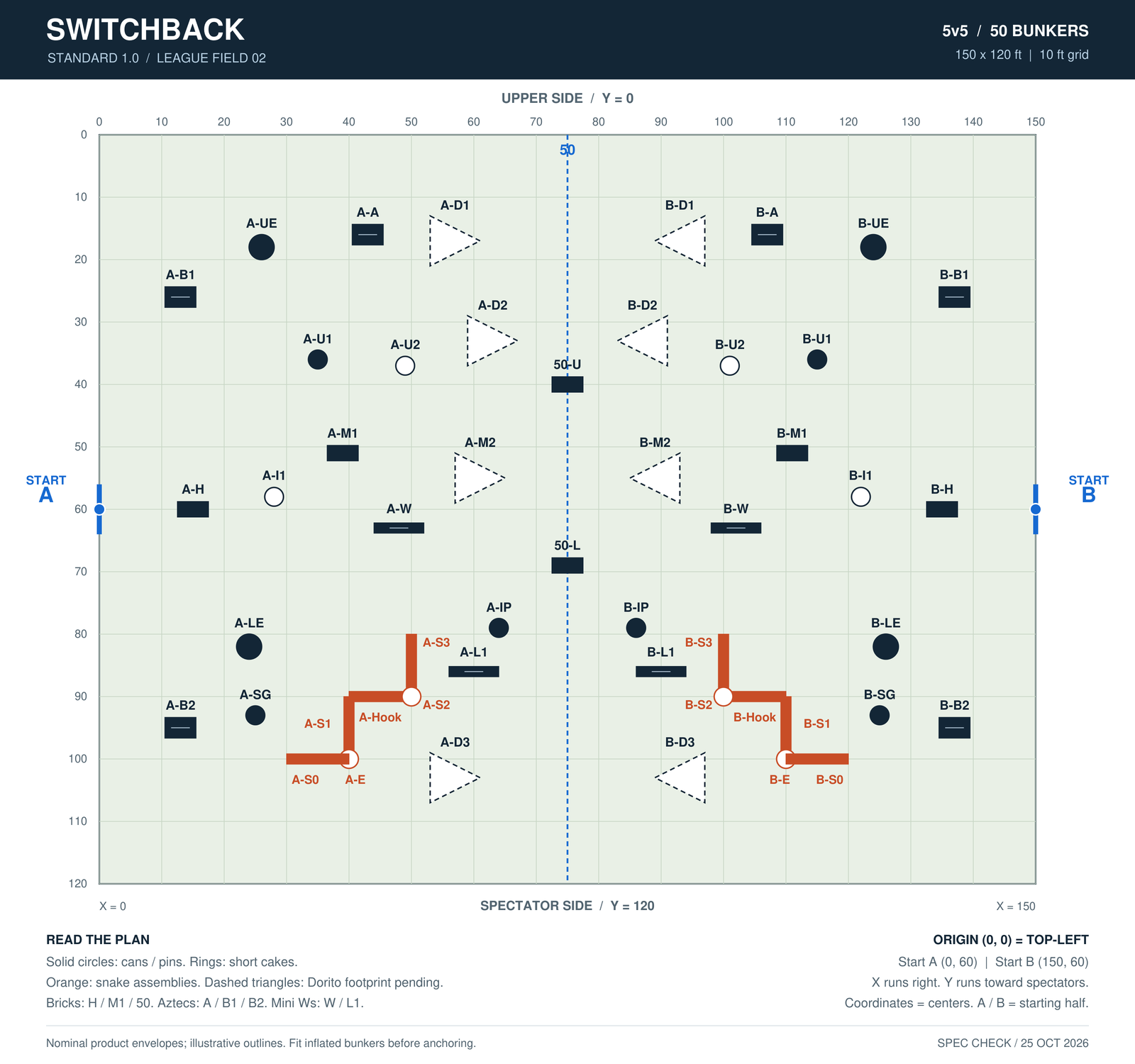

Place every bunker precisely.
Stand on the spectator side. The far-left corner is (0, 0). X increases right; Y increases toward you. Every value is in feet, measured to the center of the ground footprint. A ten-foot square equals one grid step.
Start A: (0, 60). Start B: (150, 60). Midfield: X = 75. Mirror formula: B-X = 150 − A-X; Y stays unchanged.
| Code | Bunker model | A center (X, Y) | B center (X, Y) | Position |
|---|---|---|---|---|
| H | Large Brick | (15, 60) | (135, 60) | Home brick |
| B1 | Aztec - 5 ft Tall | (13, 26) | (137, 26) | Upper rear support |
| B2 | Aztec - 5 ft Tall | (13, 95) | (137, 95) | Lower rear support |
| UE | Tall Can | (26, 18) | (124, 18) | Upper entry |
| LE | Tall Can | (24, 82) | (126, 82) | Lower entry |
| I1 | Short Cake | (28, 58) | (122, 58) | Inner entry cake |
| U1 | Pin | (35, 36) | (115, 36) | Upper switch pin |
| A | Aztec - 5 ft Tall | (43, 16) | (107, 16) | Upper arc Aztec |
| D1 | Small Dorito | (57, 17) | (93, 17) | Dorito approach |
| D2 | Small Dorito | (63, 33) | (87, 33) | Dorito advance |
| D3 | Small Dorito | (57, 103) | (93, 103) | Dorito forward |
| U2 | Short Cake | (49, 37) | (101, 37) | Upper support cake |
| M1 | Large Brick | (39, 51) | (111, 51) | Mid staging brick |
| M2 | Small Dorito | (61, 55) | (89, 55) | Mid forward Dorito |
| W | Mini W | (48, 63) | (102, 63) | Inner Mini W |
| IP | Pin | (64, 79) | (86, 79) | Inner pin |
| SG | Pin | (25, 93) | (125, 93) | Snake guard |
| L1 | Mini W | (60, 86) | (90, 86) | Lower Mini W |
| S0 | Snake Beam | (35, 100) | (115, 100) | Snake approach |
| E | Short Cake | (40, 100) | (110, 100) | Snake entry cake |
| S1 | Snake Beam | (40, 95) | (110, 95) | Snake entry beam |
| Hook | Snake Beam | (45, 90) | (105, 90) | Snake connector |
| S2 | Short Cake | (50, 90) | (100, 90) | Snake knuckle cake |
| S3 | Snake Beam | (50, 85) | (100, 85) | Snake forward tip |
| 50-U | Large Brick | (75, 40) · shared | Upper midfield blocker | |
| 50-L | Large Brick | (75, 69) · shared | Lower midfield blocker | |
A- and B- prefixes identify starting halves, for example A-M1. Call the actual occupied bunker after crossing midfield. Hook decimals describe geometry, not required survey tolerance; fit inflated pieces symmetrically.
Build and orient the field.
Mark the rectangle
Mark a 150 x 120 ft playing boundary. Set (0, 0) at the far-left corner from the spectator side. X runs right; Y runs toward spectators. Both diagonals should measure approximately 192.094 ft. Mark the 10 ft grid and the X = 75 midfield line.
Set starts, midfield, then one half
Set base centers at (0, 60) and (150, 60). Place shared bricks at (75, 40) and (75, 69). Place A-half centers using the table, then mirror to B: X-B = 150 - X-A. The field dimensions are the playing boundary, not the net-to-net footprint.
Orient the upright cover
Bricks, Aztecs and Mini Ws have their published width parallel to X and depth parallel to Y. Cylinders need no rotation. Aim A-half Dorito triangular-base apexes toward +X and B-half apexes toward -X. Confirm Dorito ground dimensions before final stakeout.
Assemble the low-cover routes
Use eight straight 10 ft AIRUPS Snake Beams. A-half angles: S0 0 degrees, S1 -90 degrees, Hook 0 degrees, S3 -90 degrees. B-half angles are the negatives of A-half angles. Angles are measured from +X, with +Y toward spectators. Negative angles rise toward Y = 0 as you move right. Hook is the legacy coordinate code for the connector beam and is not a separate Angle Beam product. E and S2 are short cakes. Use the plan for the crossing space between opposing assemblies.
Fit, secure and record
Inflate before fitting touching pieces. Follow manufacturer and venue requirements for anchoring and protective infrastructure. Apply any fitting adjustment identically on both halves. Record the installed setup. Changes to the published geometry should receive a new version.
Publish, print or rebuild.
Use the SVG for a crisp website graphic, PNG for sharing, PDF for setup, or CSV/JSON to recreate the layout.
Website handoff: upload this HTML and the accompanying files into the same directory. The layout is embedded; there are no external fonts, libraries or scripts.
